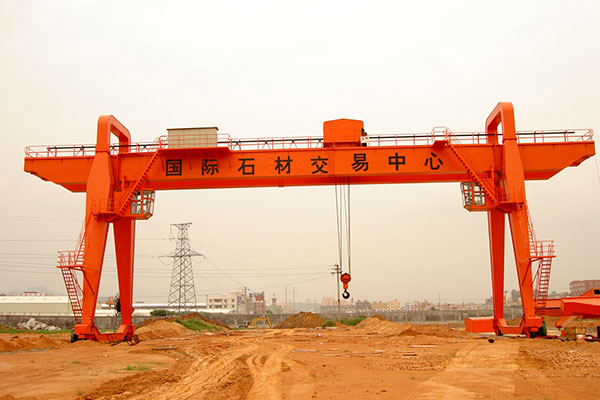

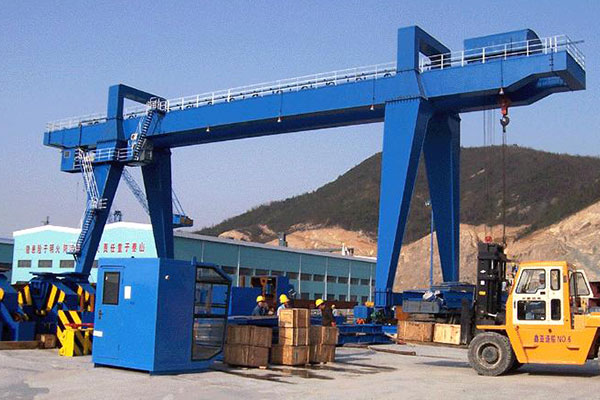

La grúa pórtico de doble viga tipo MG tiene un diseño hermoso y duradero y se usa ampliamente en almacenes al aire libre, por supuesto, también se puede usar en interiores.
Grúa pórtico de doble viga tipo MG compuesta por pórtico, cangrejo de grúa, mecanismo de desplazamiento de carro, cabina y sistema de control eléctrico, el pórtico tiene una estructura en forma de caja, la pista está al lado de cada viga y la pata se divide en tipo A.
El método de control podría ser el control desde el suelo, el control remoto, el control de la cabina o ambos, en la cabina hay asientos ajustables, tapete aislante en el piso, vidrio templado para la ventana, extintor de incendios, ventilador eléctrico y equipos auxiliares como aire acondicionado, acústica alarma e interfono que se pueden suministrar según lo requieran los usuarios.
|
Technical parameter of double girder gantry crane |
|
Capacity |
Main |
t |
50 |
75 |
100 |
200 |
320 |
400 |
500 |
|
Aux |
10 |
20 |
20 |
32 |
50 |
30 |
80 |
|
Span |
S(m) |
30 |
35 |
40 |
16 |
22 |
18 |
18 |
28.5 |
|
Lifting height |
Main |
m |
Above rail max.22
|
22 |
16 |
12 |
13 |
18 |
3 3/10 |
|
Aux |
Above rail max.24
|
17.5 |
13 |
14 |
20.0 |
34.0 |
|
Lifting speed |
Main |
m/min |
7.68 |
6.25 |
4.62 |
0.2-1.8 |
0.14-1.4 |
0.15-1.5 |
0.15-1.5 |
|
Aux |
19.8 |
9.28 |
9.28 |
6 |
7.5 |
6 |
0.6-6 |
|
Trolley speed |
m/min |
38.6 |
38.9 |
13.1 |
20 |
7 |
10 |
1.36-13.6 |
|
Crane speed |
m/min |
42.7 |
17.8 |
16 |
17 |
18 |
1.6-16 |
|
Work duty |
|
A5 |
A5 |
A5 |
A5 |
A5 |
A5 |
A5 |
|
Track |
|
QU 80 |
QU 100 |
QU 120 |
Henan Mine Crane could arrange engineer to do supervision of installation, make the load test, do commissioning, training of the buyer's workers, the buyer should be responsible for each of our technician’s accommodation, meals, round-trip tickets, travel expenses and self-security. The engineer’ salary is USD100.00 per day abroad.
1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;
2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;
3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;
4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;
5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost);
