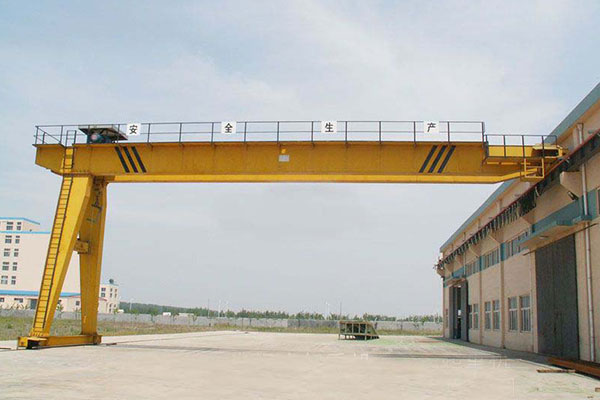

La grúa de semi-pórtico en comparación con la grúa de una viga eléctrica, ahorra inversión y espacio, en comparación con la grúa de pórtico de polipasto eléctrico, ahorra espacio de producción, por lo tanto, al seleccionar la grúa de una sola viga eléctrica ordinaria o la grúa de pórtico de polipasto eléctrico no es muy ideal, la grúa de semi-pórtico Es una mejor solución.
1, estructura de grúa semi-pórtico: por el mecanismo de elevación y el carro, viga simple y pata, armario eléctrico, sistema operativo y sistema de protección de seguridad, etc.
2. Accionamiento de grúa semi-pórtico: motor de jaula de ardilla + máquina de desaceleración de flanco de diente duro, frenos de disco, mantenimiento gratuito;
3. Modo de operación de grúa semi-pórtico: el cable a sostener (IP65, vida 500000 veces), control remoto inalámbrico, operación de conducción
Diseñamos grúas semi pórtico con diferentes capacidades y luces que satisfarán sus requisitos.
|
Lifting capacity |
t |
10 |
|
Span |
m |
10 |
12 |
16 |
20 |
|
Lifting height |
m |
6 |
|
Travelling mechanism |
Travelling speed |
Ground |
m/min |
20 |
|
Controling room |
20 30 |
|
Motor |
Ground |
|
ZDY(D)122-4/1.5 X2 |
ZDY131S-4/2.2 X2 |
|
Controling room |
|
ZDR100-4/1.5 X2 |
ZDR112L1-4/2.1 X2 |
|
Reducer |
|
LDA1 LDAC1 |
LDH LDHC |
|
Wheel diameter |
mm |
Φ270 |
Φ400 |
|
Electric hoist |
Type |
|
CD1 MD1 |
|
Lifting speed |
m/min |
7 7/0.7 |
|
Travelling speed |
m/min |
20 (30) |
|
Motor |
Lifting |
|
ZD151-4/13 ZDS11.5/13 |
|
Travelling |
|
ZDY121-4/0.8 X2 |
|
Working system |
A4 |
|
Steel track recommended |
P38 |
|
Power source |
3-Phase 380V 50Hz |
|
The crane weight |
Ground |
Kg |
6600 |
7500 |
8350 |
10650 |
|
Controling room |
Kg |
7400 |
8300 |
9150 |
11450 |
|
Max. wheel load |
KN |
78 |
85 |
94 |
103 |
|
Basic dimendions |
H1 |
mm |
1670 |
|
H2 |
900 |
1000 |
1100 |
1250 |
|
H3 |
720 |
865 |
920 |
970 |
|
B |
4800 |
5200 |
|
B1 |
3700 |
|
B2 |
1600 |
|
B3 |
2000 |
2500 |
3000 |
Henan Mine Crane could arrange engineer to do supervision of installation, make the load test, do commissioning, training of the buyer's workers, the buyer should be responsible for each of our technician’s accommodation, meals, round-trip tickets, travel expenses and self-security. The engineer’ salary is USD100.00 per day abroad.
1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;
2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;
3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;
4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;
5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost);
